Magnet Build

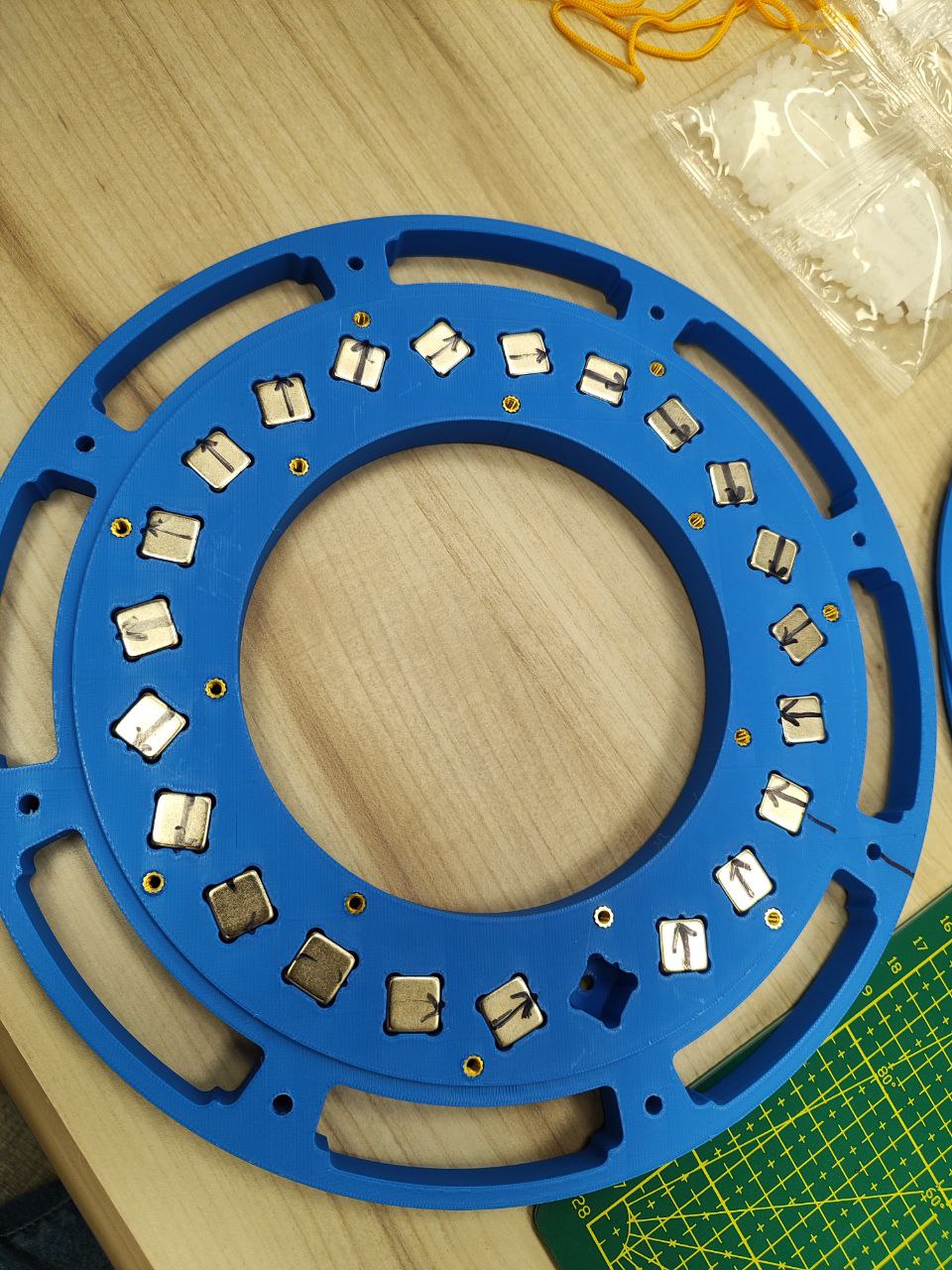

The foundation of the scanner begins with the magnet. Strong N48 neodymium magnets are carefully positioned into circular rings.

Placing N48 neodymium magnets into a ring.

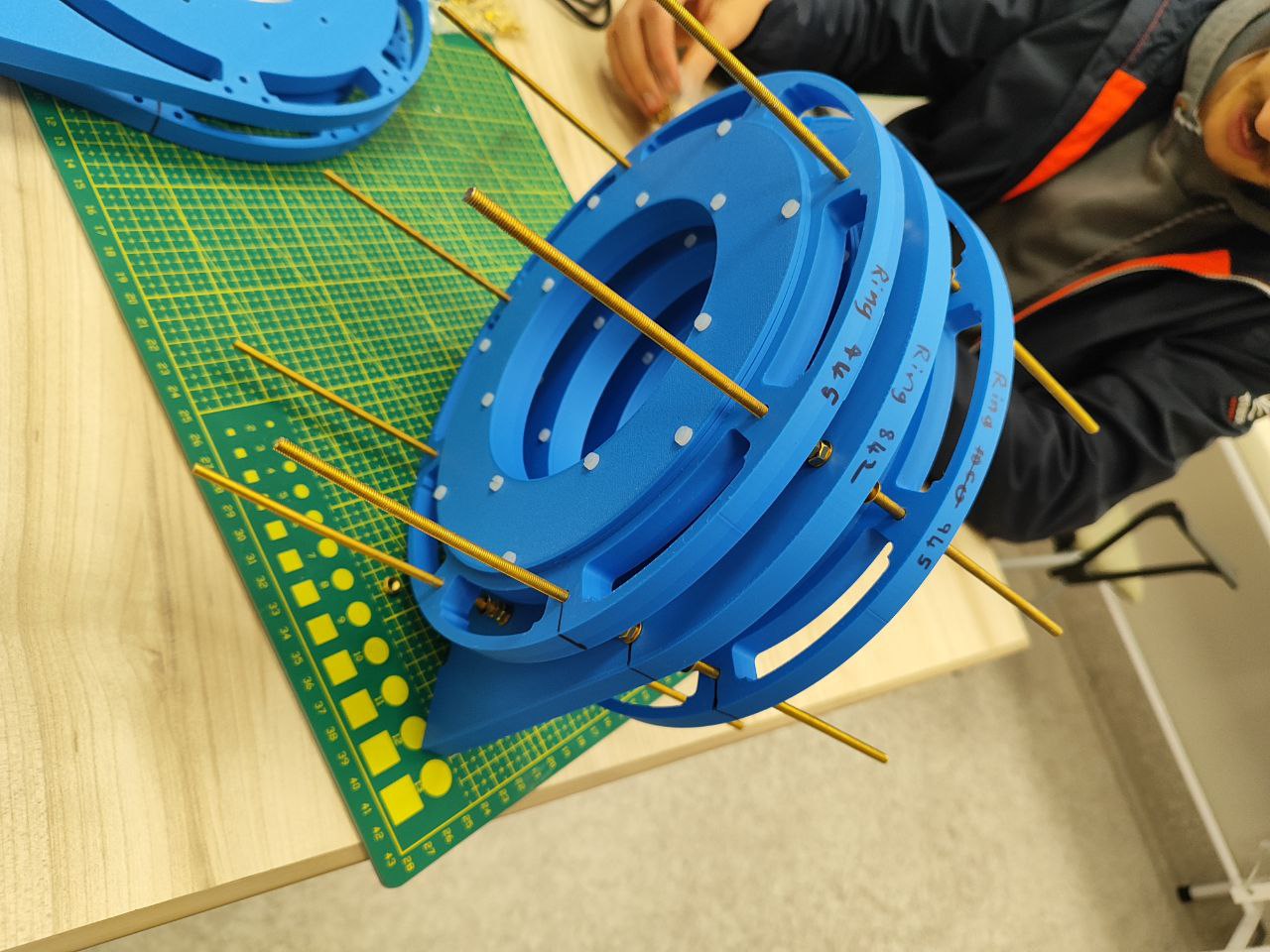

Once a full ring is completed, the rings are stacked in a symmetric arrangement. This ensures stability and balanced magnetic geometry.

Symmetric assembly of multiple magnet rings.

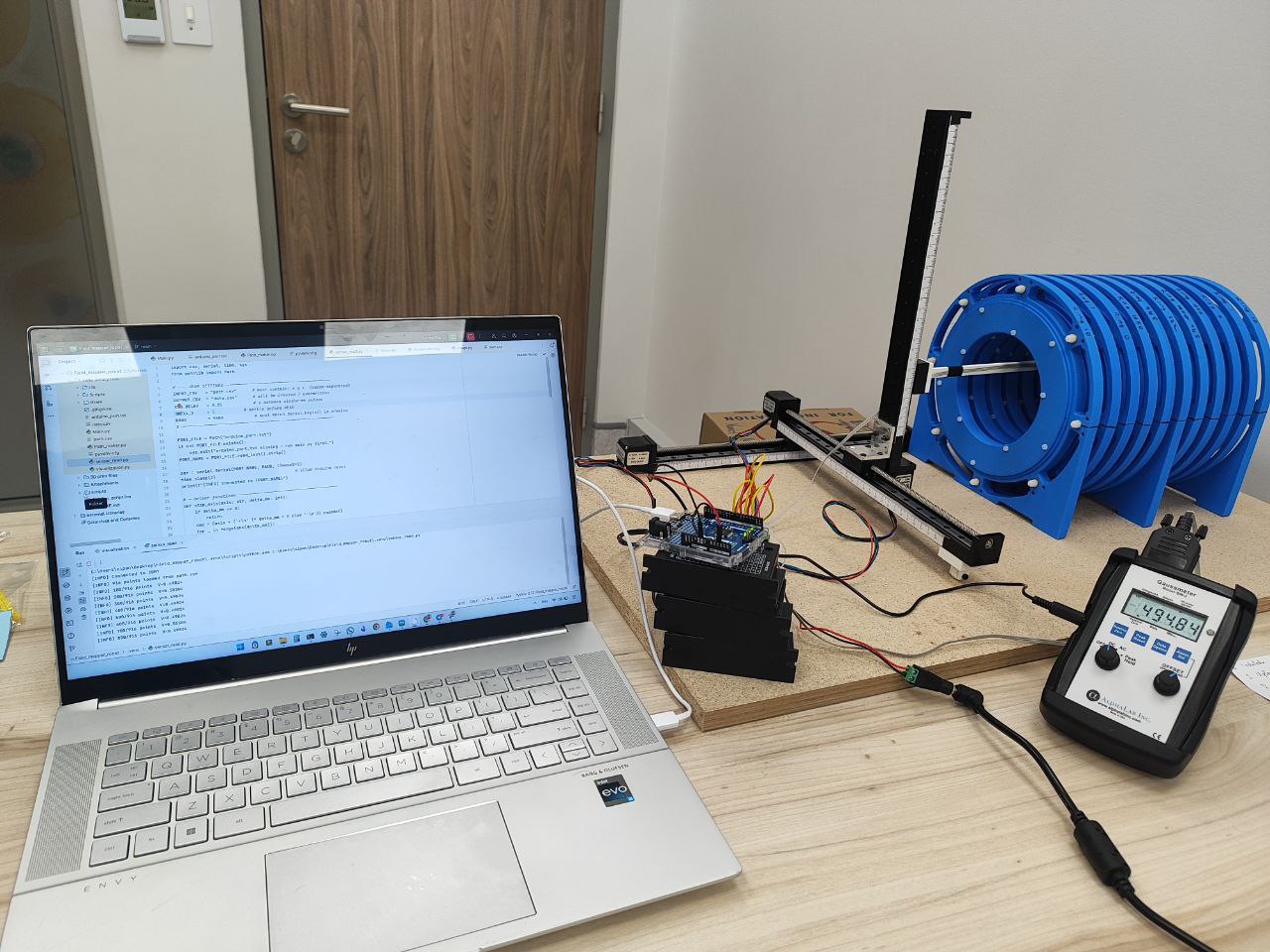

With the structure in place, the magnetic field distribution is measured. A custom robot scanned 914 points inside a 6 cm diameter sphere to capture detailed field values.

Field mapping using the custom robot.

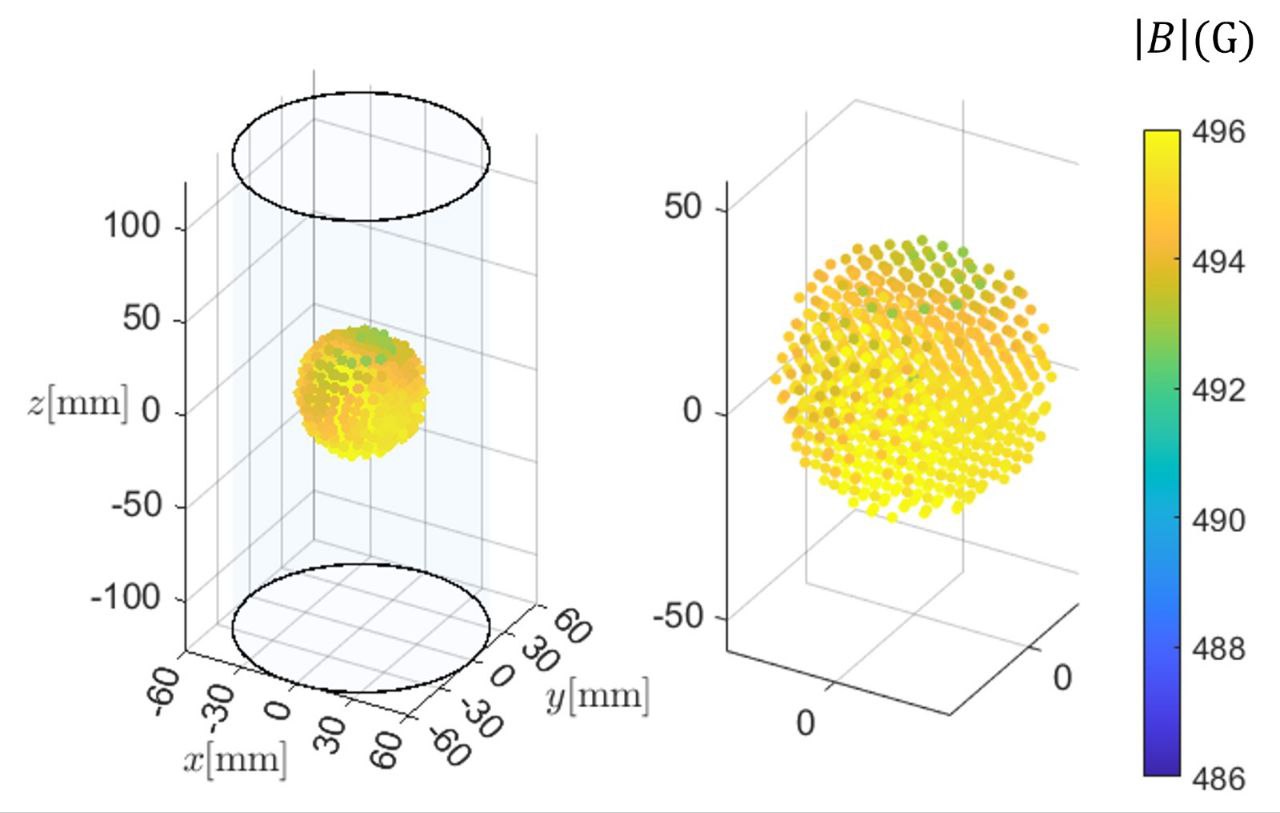

Finally, the data is visualized in 3D. These plots confirm that the magnet design achieves the required homogeneity.

3D visualization showing field homogeneity.
